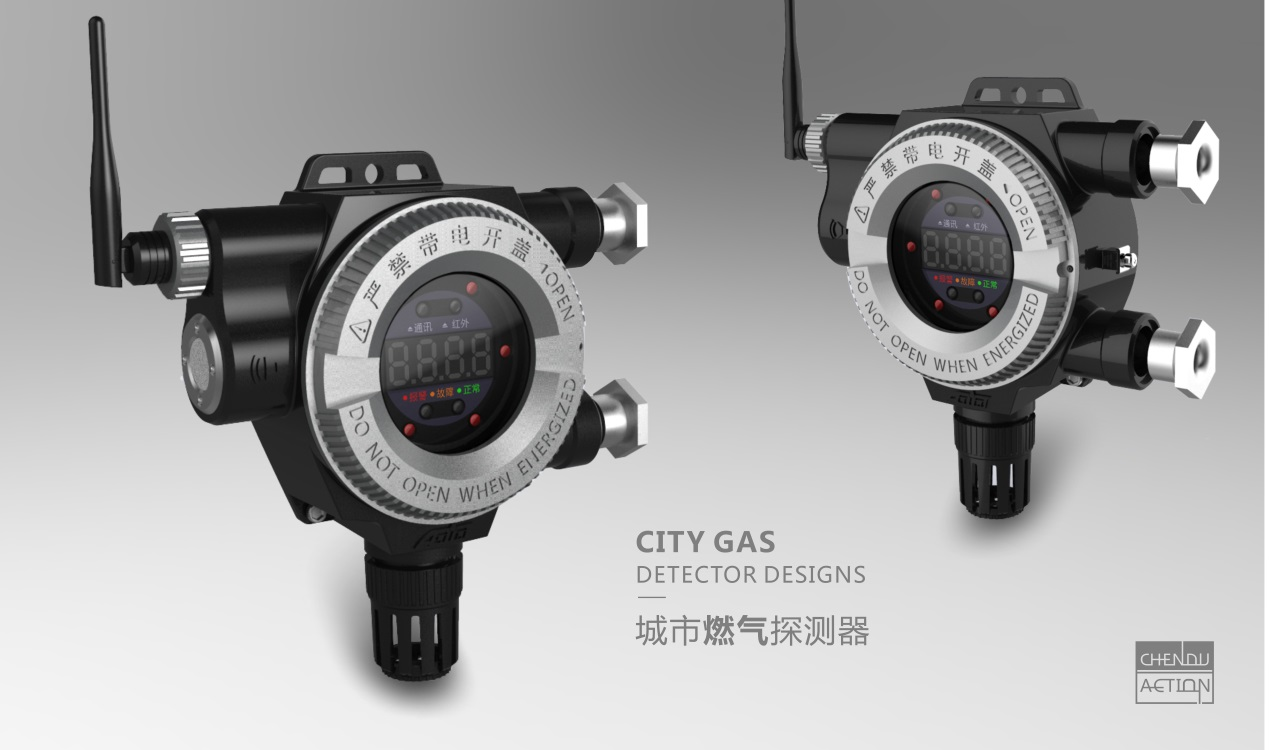

GTY-AEC2335 AC220V Powered Fixed Gas Detector
Technical specifications
|
Item |
Data |
|
Principle of detection |
Catalytic combustion |
|
Sampling mode |
Diffusive sampling |
|
Detected range |
(0~100)%LEL |
|
Response time |
≤12s |
|
Operating voltage |
AC176V~AC264V (50Hz±1%) |
|
Power consumption |
≤4W |
|
Alarming mode |
Buzzer alarming and indicator alarming |
|
Protection grade |
IP66 |
|
Explosion proof grade |
ExdⅡCT6Gb |
|
Service life of the sensor |
Three years (typical) |
|
Environmental condition for operating |
Temperature: 0℃~+55℃; relative humidity: ≤93%; pressure: 86kPa~106kPa |
|
Storage temperature |
-20℃~+50℃ |
|
Outlet hole connecting thread |
NPT3/4＂(female) |
Product Parameter Characteristics
| Detection principle | Catalytic combustion, Electrochemical | Signal transmission mode | A-BUS+、4-20mA、RS485 |
| Sampling mode | Diffusive sampling | Alarm error | ±3%LEL |
| Operating voltage | DC24V±6V | Indication error | ±3%LEL（display on the connected gas alarm controller） |
| Display mode | Digital tube display | Sound and light configuration | Optional ACTION explosion-proof audible and visual alarm |
| Power consumption | ＜3W（DC24V） | Signal transmission distance | ≤1500m（2.5mm2 ） |
| Press range | 86kPa～106kPa | Operating temperature | -40℃～＋70℃ |
| Explosion proof grade | Catalytic combustion：ExdⅡCT6Gb/Ex tD A21 IP66 T85℃ (Explosion-proof + dust)Electrochemical：Ex d ib ⅡC T6 Gb/Ex t D ibD A21 IP66 T85℃(Explosion-proof + dust) | Humidity range | ≤93%RH |
| Shell material | Cast aluminum | Protection grade | IP66 |
| Electrical interface | NPT3/4＂internal thread | ||
Major Features
● AEC220V power supply
This detector works while it is electrified (220V). The comprehensive cost is low. It has functions of controller + detector, as an independent system;
● Alarming mode
Audible-visual alarm: buzzer alarming and indicator alarming;
● Real-time concentration detection
Monitor combustible gases within the lower explosive limit in the industrial environment and give alarms;
● Linked output
Multiple output modes are available. The detector can link solenoid valves and fans, etc;
● Wireless transmission
GPRS communication modules are optional, used to send data to MSSP wirelessly. User can monitor equipment running statuses through a fixed terminal or a mobile terminal APP;
● High sensitivity
Automatic zero correction (to avoid zero wander that may cause a measurement error), automatic curve compensation, intelligent temperature and zero compensation algorithm (for better performance), low power consumption, two-point calibration, curve-fitting technique, high accuracy, stable performance and reliable sensitivity;
● IR remote control
An IR remote controller is used to set parameters;
● Application sites
Mini-sized industrial and commercial gas application sites in the urban fuel gas field.
Model Selection
|
Model |
Signal output |
Sensor equipped |
Adaptive control system |
|
GTY-AEC2335 |
NB-IoT or A-BUS+ bus signal GPRS wireless remote transmission DC12V capacity discharge + passive switching value For other output types, please consult with the head office |
Catalytic combustion |
Bus controller MSSP remote monitoring platform |
Model Selection

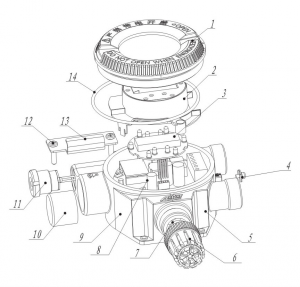

1. Top cover component
2. Plastic supporting cover
3. Circuit board -1
4. Grounding screw
5. Bottom box
6. Outer cover of the gas collecting head
7. Gas collecting head
8. Circuit board -2
9. Nameplate
10. Horn component
11. Switching button
12. Mounting screw
13. Mounting hook
14. Seal ring
Boundary Dimension
Dimension: Length× width× height: 217mm×188mm×75.5mm
Mounting Mode
The detector should be wall-mounted. Please ensure that the detector is mounted firmly and reliably. The wall mounting mode is shown as below:
