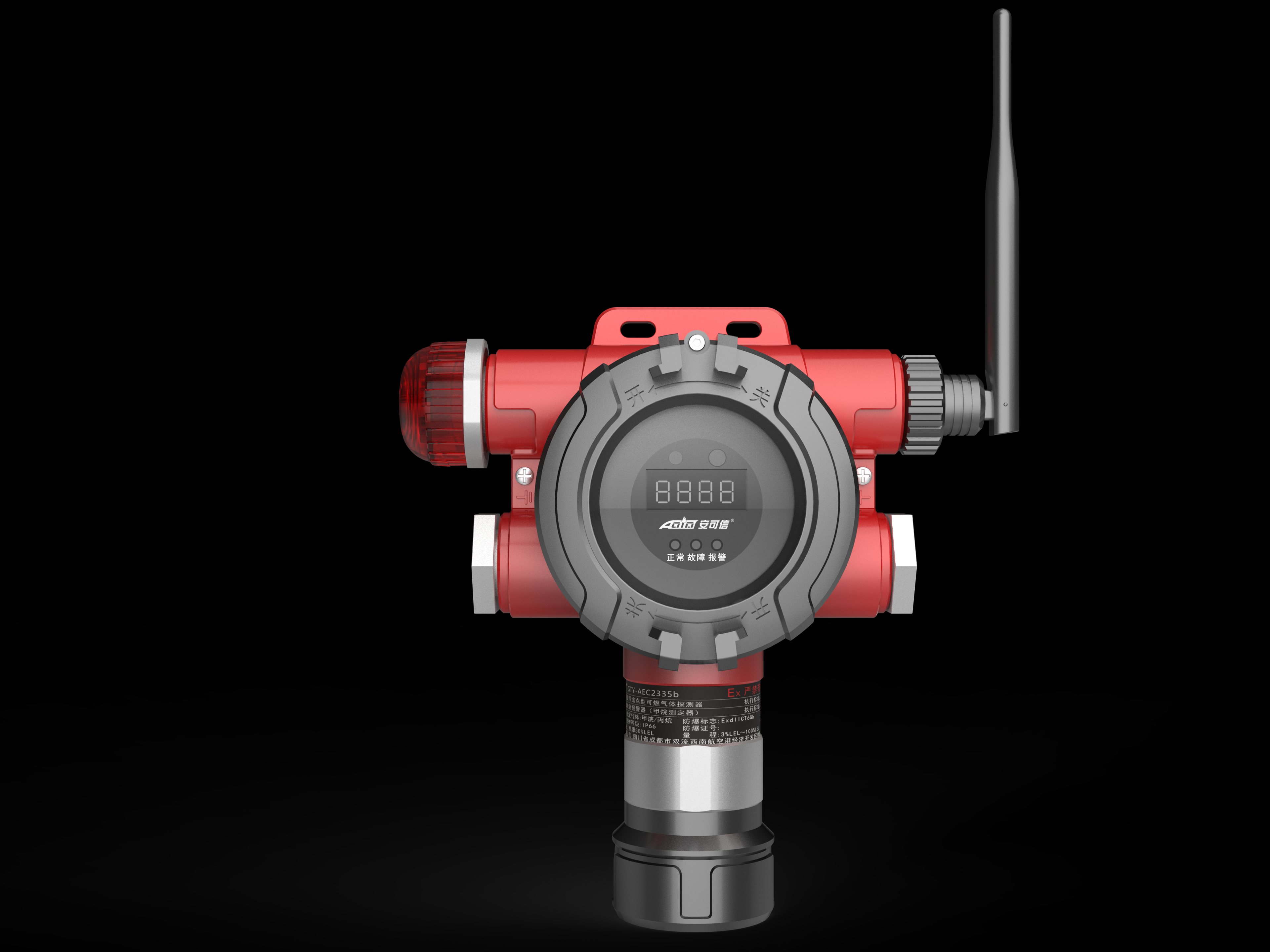

GTY-AEC2335b Standalone Combustible Gas Detector for Commercial

Short Description:

AEC220V power supply

Alarming mode

Real-time concentration detection

LED display

Sensor can be hot swapped and replaced

Welcome to click the Inquiry button to obtain the free samples!

ACTION gas detectors are OEM & ODM supported and true mature devices, long-tested in millions of projects domestic and overseas since 1998! Don't hesitant to leave your any inquiry here!


Product Detail

Product Tags

gas detector

Technical specifications

Item

Data

Detected gases

Natural gas, Propane gas

Principle of detection

Catalytic combustion

Sampling mode

Diffusive sampling

Detected range

(0~100)%LEL

Response time

12s

Operating voltage

AC176V~AC264V (50Hz±1%)

Power consumption

4W

Alarming mode

Buzzer alarming and indicator alarming

Protection grade

IP66

Explosion proof grade

ExdCT6Gb

Service life of the sensor

Three years (typical)

Environmental condition for operating

Temperature: -40~+70; relative humidity: 93%; pressure: 86kPa~106kPa

Storage temperature

-25~+55

Outlet hole connecting thread

NPT3/4(female)

Product Parameter Characteristics

Detection principle Catalytic combustion, Electrochemical Signal transmission mode A-BUS+4-20mARS485
Sampling mode Diffusive sampling Alarm error ±3%LEL
Operating voltage DC24V±6V Indication error ±3%LELdisplay on the connected gas alarm controller
Display mode Digital tube display Sound and light configuration Optional ACTION explosion-proof audible and visual alarm
Power consumption 3WDC24V Signal transmission distance ≤1500m2.5mm2
Press range 86kPa106kPa Operating temperature -40℃~+70
Explosion proof grade Catalytic combustionExdⅡCT6Gb/Ex tD A21 IP66 T85℃ (Explosion-proof + dust)ElectrochemicalEx d ib ⅡC T6 Gb/Ex t D ibD A21 IP66 T85℃(Explosion-proof + dust) Humidity range ≤93%RH
Shell material Cast aluminum Protection grade IP66
Electrical interface NPT3/4internal thread

Major Features

The AEC2335b series is a commercial independent combustible gas detector designed specifically for high temperature, high humidity, and heavy oil fume environments in commercial kitchens. Using AC220V mains power supply for independent operation. The whole machine module design allows for on-site hot swapping and replacement of sensors, reducing maintenance costs in the later stage. This series of products uses imported gas sensors with good accuracy and reliability, and has been widely used in various gas consuming places such as catering kitchens, canteens, and hair salons.

● AC220V mains power supply, easy to access, plug and play

This detector works while it is electrified (220V). The comprehensive cost is low. It has functions of controller + detector, as an independent system;

● Equipped with independent sound and light alarm lights, with flexible configuration

Audible-visual alarm: buzzer alarming and indicator alarming;

● Adopting highly reliable LED digital display

Monitor combustible gases, it can monitor the concentration of combustible gases in the area in real time;

● Sensors can be hot swapped and replaced, greatly reducing maintenance costs in the later stage;

● Linked output

Multiple output modes are available. The detector can link solenoid valves and fans, etc;

● Optional wireless communication function (NB IoT), especially suitable for remote supervision of commercial users;

● High sensitivity

Automatic zero correction (to avoid zero wander that may cause a measurement error), automatic curve compensation, intelligent temperature and zero compensation algorithm (for better performance), low power consumption, two-point calibration, curve-fitting technique, high accuracy, stable performance and reliable sensitivity;

● IR remote control

An IR remote controller is used to set parameters;

● It has a set of optional output methods (switch quantity or level output).

Model Selection

Model

Signal output

Sensor equipped

Adaptive control system

GTY-AEC2335b

NB-IoT or A-BUS+ bus signal

GPRS wireless remote transmission

DC12V capacity discharge + passive switching value

For other output types, please consult with the head office

Catalytic combustion

Bus controller

MSSP remote monitoring platform

Model Selection

1. Top cover component

2. Plastic supporting cover

3. Circuit board -1

4. Grounding screw

5. Bottom box

6. Outer cover of the gas collecting head

7. Gas collecting head

8. Circuit board -2

9. Nameplate

10. Horn component

11. Switching button

12. Mounting screw

13. Mounting hook

14. Seal ring

gas detector-1

Boundary Dimension

Dimension: Length× width× height: 217mm×188mm×75.5mm

gas detector-2

Mounting Mode

The detector should be wall-mounted. Please ensure that the detector is mounted firmly and reliably. The wall mounting mode is shown as below:

gas detector-3
