JB-ZX-AEC2252B Solenoid valve linkage box

Short Description:

Solenoid valve linkage box can be matched with ACTION controller equipment to manage and control various types of solenoid valves.

ACTION gas detectors are OEM & ODM supported and true mature devices, long-tested in millions of projects domestic and overseas since 1998! Don't hesitant to leave your any inquiry here!


Product Detail

Product Tags

Function Description

AC220V power supply (default), DC24V power supply can be provided on site

With multiple signal output: pulse output, level output, immediate action delay disconnect output, etc., to adapt to different types of solenoid valves

Can manually/automatically control solenoid valve

JB-ZX-AEC2252B/M is A-BUS+ bus linkage type: built-in output module, bus system communication, can manually or receive instructions from the adapted controller to automatically remotely control the solenoid valve. The automatic control logic relationship can be arbitrarily set on the controller according to the needs of the design, and can detect the action of the external linkage equipment and return to the state according to the command.

Adaptation controller: AEC2301a, AEC2302a

JB-ZX-AEC2252B is a direct control type: installed in the field, the solenoid valve can be manually turned off on site; and the external control signal input interface is reserved, which can be adapted to the built-in output module of the adaptive controller, and the solenoid can be automatically turned off remotely valve.

Adapted controller: AEC2301a, AEC2302a, AEC2303a, AEC2305, AEC2392a, AEC2393a, AEC2392b, AEC2392a –BS, AEC2392a –BM or independent use

Technical parameters

Item

Data

Working voltage

AC220V 15%(50Hz)

Maximum output current

5A(can be customized according to user requirements)

Working environment

-10℃~+50℃, humidity≤93%RH

Dimensions

235mm x 315mm x 95mm or 300mm x 400mm x 128mm

Total Weight

About 5Kg

Selection Information

Product Model

JB-ZX-AEC2252B/M

Additional marking

1) Bdefault

2) B/Mwith output module

Output type

1) AC220V/DC24V pulsesupporting gas emergency cut-off solenoid valve: close the valve at the moment of power-on, and manually reset the solenoid valve)

2) AC220V/DC24V levelsupporting AC220V or DC24V solenoid valve: power on to open the valve, power off to close the valve, manual reset solenoid valve

3) AC220V levelsupporting AC220V solenoid valve: power on to open the valve, power off to close the valve, and then power on to open the valve

4) Other

Note: The factory defaults single output AC220V pulse signal, supporting gas emergency cut-off solenoid valve (the valve is closed at the moment of power-on, and  reset the solenoid valve manually)

When ordering, please indicate the operating voltage and working method of the solenoid valve.

Protocol mode

A-BUS+ bus protocol

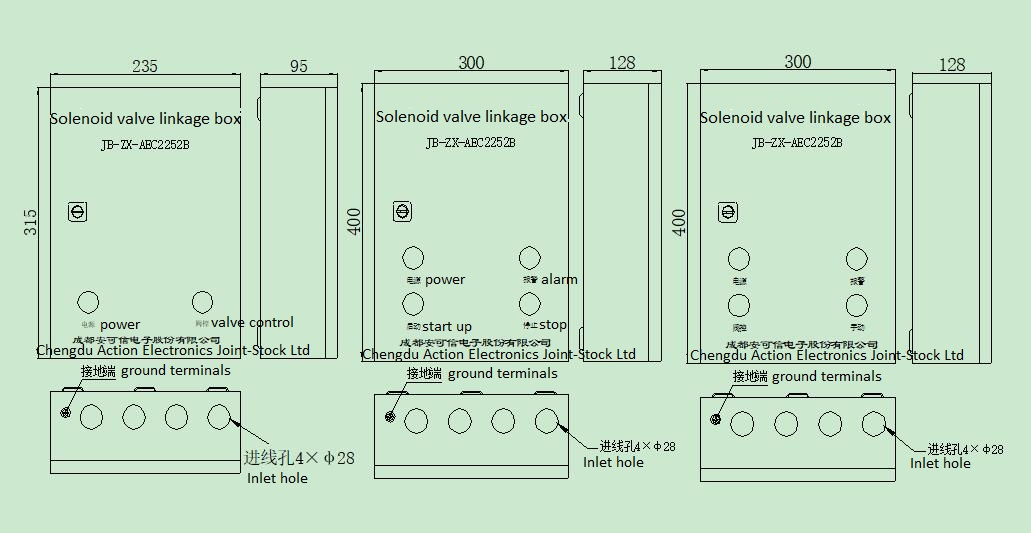

Product Dimension
